September 17, 2019

New 5V Parallel NOR Flash

The News: Alliance Memory bolsters its product offering with a new line of 5V parallel NOR Flash memory products in boot and uniform sectored architectures. Available in densities from 1M to 16M, the devices offer access times of 55ns to enable fast, low-latency read speeds, allowing for both direct code execution and data storage in a single memory product.

Part Numbers: AS29CF010-55CCIN, AS29CF040-55CCIN,AS29CF800T-55TIN,AS29CF800B-55TIN,AS29CF160T-55TIN, and AS29CF160B-55TIN

Cross Reference Table

ALLIANCE MEMORY AMIC CYPRESS/SPANSION MICRON MACRONIX
AS29CF010-55CCIN A29010 AM29F010B-FFJI M29F001
AS29CF040-55CCIN A29040B AM29F040B-55JI M29F040 MX29F040CQI-70G
AS29CF800T-55TIN A29801A AM29F800T M29F800FT MX29F800CTTI-70G
AS29CF800B-55TIN A29801A AM29F800B M29F800FB MX29F800CBTI-70G
AS29CF160T-55TIN A29161A AM29F160DT M29F160FT
AS29CF160B-55TIN A29161A AM29F160DB M29F160FB

Key Specifications and Benefits:

  • 5V VCC
  • Offered in boot and uniform sectored architectures
    • Boot devices are available in top or bottom block configurations
  • Densities from 1M to 16M
  • Fast access times of 55ns
  • Reliable, long-term performance for embedded systems
    • Minimum of 100,000 program/erase cycles per sector
    • 20-year data retention at +125°C
  • Flexible sector architectures
  • Embedded algorithms for automatic write/erase and verification
  • Operate over an industrial temperature range of -40°C to +85°C
  • Current:
    • 20mA typical active read currents
    • 30mA typical program/erase currents
    • Standby mode reduces power consumption to as low as 1μA

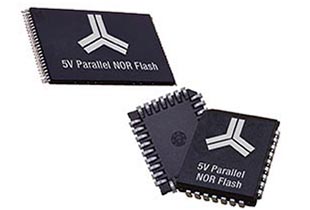

  • Packages:
    • 32-pin PLCC (uniform sector devices)
    • 48-pin TSOP I (boot devices)
  • Programmed in standard EPROM programmers
  • Lead (Pb)-free and RoHS 2.0 compliant

Target Applications:

  • Digital still cameras (DSC and DSLR), networking routers and switches, home gateways, set-top boxes (STB), automotive infotainment systems, industrial robotics, and medical electronics

The Context: With their fast boot times, Alliance Memory’s 5V parallel NOR flash solutions are ideal for high-performance and process-intensive applications. The devices’ flexible sector architectures allow any combination of sectors to be erased and reprogrammed without affecting the content of other sectors — ensured by a hardware protection feature that prevents inadvertent program or erase operations. An Embedded Program algorithm automatically writes and verifies bytes at specified addresses, while an Embedded Erase algorithm automatically erases and verifies the entire chip or designated sectors.

Availability: Samples of the 5V parallel NOR Flash memory products are available now. Production quantities will be available in October 2019, with lead times of six to eight weeks.
